Non-Rotating

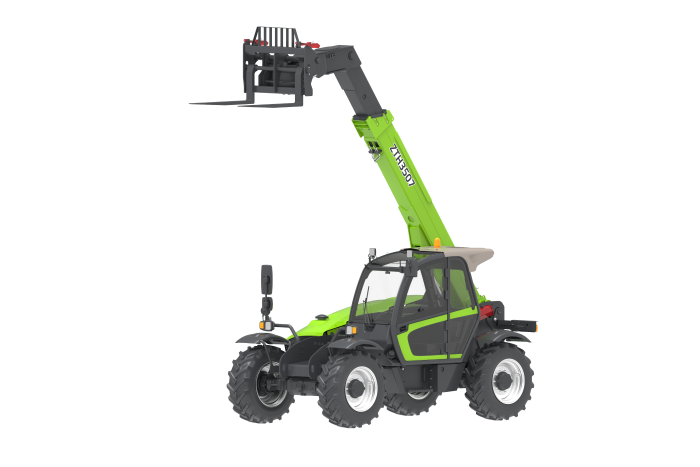

ZTH3507

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.

CE Certified

ZTH3507
  • Max. Working Height
    7m
    Max.Working Height
  • Platform Capacity
    3500kg
    Platform Capacity
  • Weight
    7965kg
    Weight
HIGHLIGHT
  • Strong power chassis with excellent driving performance and off-road capacity

    4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability

    Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope

    10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience

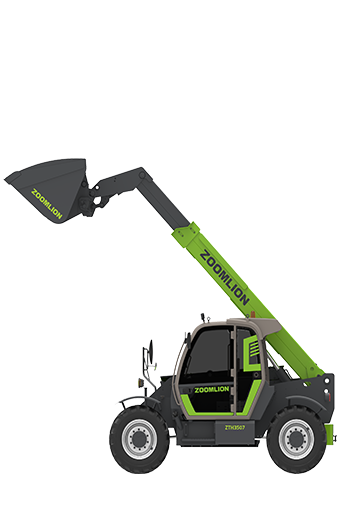

    Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

ZTH3507
Specs
Model Example
Size
A Overall length 4.84m 15ft 11in
B Overall width 2.29m 7ft 6in
C Overall height 2.57m 8ft 5in
F Wheelbase 3.04m 9ft 11in
G Min ground clearance 0.44m 1ft 5in
Performance
Max lift height 7m 22ft 11in
Rated capacity 3500kg 7716lb
Lift capacity at max height 3000kg 6614lb
Max forward reach 3.95m 12ft 11in
Lift capacity at max reach 1200kg 2646lb
Weight 7965kg 17559.8lb
Max traction force 66kN 14837.4lbf
Frame leveling angle / /
Turning radius - outside 3.98m 13ft
Power
Engine WEICHAI WP4.1/Cummins F3.8 WEICHAI WP4.1/Cummins F3.8
Rated power 72/90kw 97/120Hp
Max torque 460/500Nm 339/368lb*ft
Cylinder 4 4
Displacement 4088m l1.08gal
Transmission Hydrodynamic Hydrodynamic
Max drive speed 40km/h 24.85mph
Steering Front wheels/4WS/Crab Front wheels/4WS/Crab
Tire
Type 460/70R24 460/70R24
Hydraulic
Implement pump Piston pump Piston pump
Hydraulic flow - pressure 150-270L/ min-bar 39.6gal/min -270bar
Tank
Hydraulic tank capacity 145L 38.3gal
Fuel tank capacity 145L 38.3gal
Fork
Fork size 1220mm×122mm×50mm 4ft×4.8in×1.968in
Fork rotary 142° 142°
Working speed
Boom up/down 8/8s 8/8s
Boom extend/retract 8/9s 8/9s
Fork lift 5s 5s
Fork retract 4s 4s
