Diesel
ZA16J

Diesel powered articulating boom lifts for precise position and extreme flexibility.

CE Certified

ZA16J
  • Max. Working Height
    18m
    Max.Working Height
  • Platform Capacity
    250 kg/360 kg
    Platform Capacity
  • Weight
    8550kg
    Weight
ZA16J
Specs
Model Example
Size

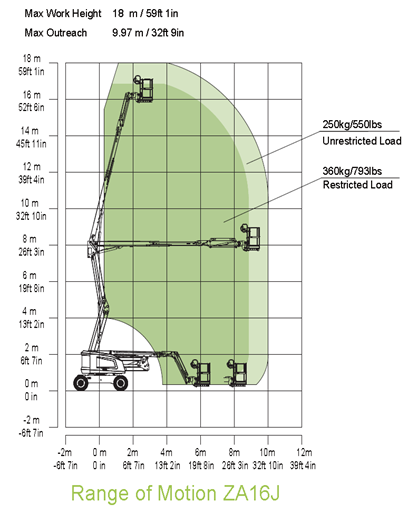

Work Height 18m 59ft 1in
Platform Height 16m 52ft 6in
Horizontal Outreach 9.97m 32ft 9in
Up and Over Height 8m 26ft 3in

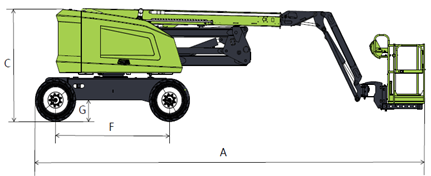

A - Stowed Length 7.95m 26ft 1in

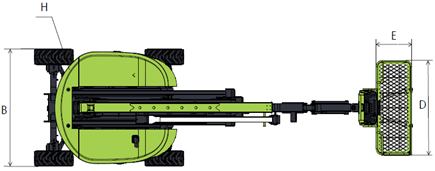

B - Stowed Width 2.27m 7ft 6in
C - Stowed Height 2.23m 7ft 4in
D - Platform Length 1.83m 6ft 1in
E - Platform Width 0.76m 2ft 6in
Jib Length
F - Wheelbase 2.36m 7ft 9in
G - Ground Clearance 0.42m 1ft 5in
Performance
Platform Capacity 250 kg/360 kg 550lbs/793lbs
Drive Speed 6km/h 3.73mph
Gradeability 45%(24°) 45%(24°)
Axles Oscillation 0.1m 4in
Turning Radius (Inside) 2.06m 6ft 10in
Turning Radius (Outside) 4.78m 15ft 9in
Turntable Swing 360° continuous 360°continuous
Platform Rotation ±90° ±90°
H-Tail Swing 0m 0m
Max. Working Slope
Max. Wind Speed 12.5m/s 7.77mph
Power
Diesel Engine Kubota V2403(EU Ⅴ) 36.8kw/2700rpm Kubota V2403(CN Ⅲ) 36kw/2600rpm Kubota V2403(EU Ⅴ) 36.8kw/2700rpm Kubota V2403(CN Ⅲ) 36kw/2600rpm
Fuel Tank Capacity 150L 33gal
Auxiliary Power 12V 12V
Control Voltage 12V 12V
Hydraulic System Capacity 110L 24.2gal
Hydraulic Tank Capacity 80L 17.6gal
Drive
tire
Type Foam-filled tire Foam-filled tire
Weight
Gross 8550kg 18849lbs
