ZMP09J
Specs
Model Example

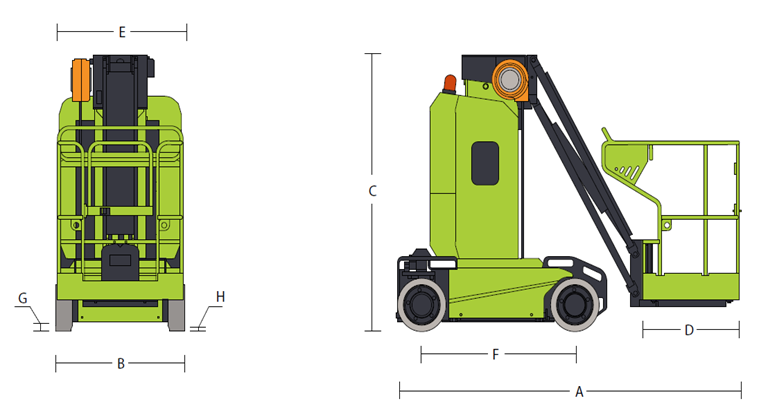

Size

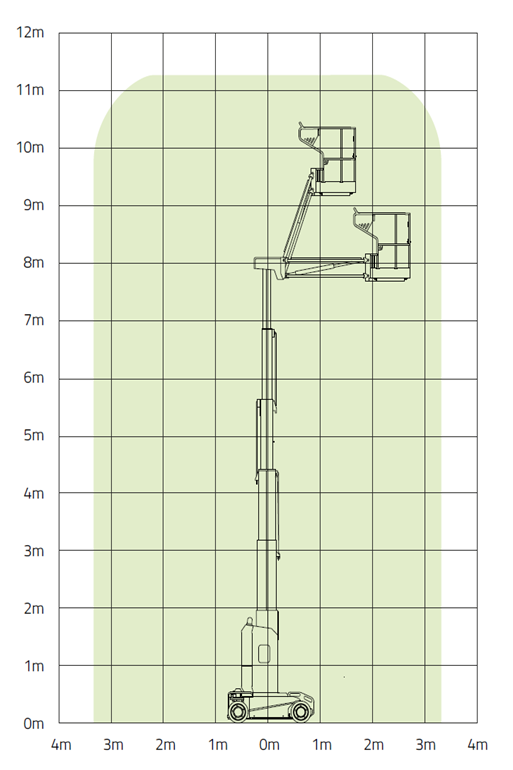

Platform Height 11.2m 36ft 9in
A - Platform Height-Elevated 9.2m 30ft 2in
B - Platform Height-Stowed 3.23m 10ft 7in
C - Platform Length 7.75m 25ft 6in
D - Platform Width 2.7m 8ft 10in
K-Platform Extension 1m 3ft 3in
E - Overall Height 1.99m 6ft 6in
F - Overall Length 0.76m 2ft 6in
G - Overall Width 0.99m 3ft 3in
H - Wheelbase 1.2m 3ft 11in
I - Ground Clearance (Stowed) 0.065m 2.6in
J - Ground Clearance (Raised) 0.015m 0.6in
Performance
Platform Capacity 200kg 440lb
Max. Number of Workers(indoor/outdoor) 2/1 2/1
Drive Speed (Stowed) 4.5km/h 2.80mph
Drive Speed (Raised) 0.5km/h 0.31mph
Turning Radius (Inside) 0.2m 8in
Turning Radius (Outside) 1.61m 5ft 4in
Lifting Motor AC 24V AC 24V
Drive Motor AC 24V AC 24V
Up/Down Time 40/45s 40/45s
Gradeability 25%(14°) 25%(14°)
Max. Working Slope 2.5° 2.5°
Control Proportional control Proportional control
Drive Rear wheels Rear wheels
Tire Solid seamless tire Solid seamless tire
Power
Battery 4×6V/240Ah 4×6V/240Ah
Charger 24V/30A 24V/30A
Weight
Gross 2995kg 6600lb
