| Size | ||
| A Overall length | 8.9m | 29ft 2in |
| B Overall width | 2.48m | 8ft 2in |
| C Overall height | 3.04m | 9ft 11in |
| F Wheelbase | 3.07m | 10ft 1in |
| G Min ground clearance | 0.4m | 1ft 4in |
| Performance | ||

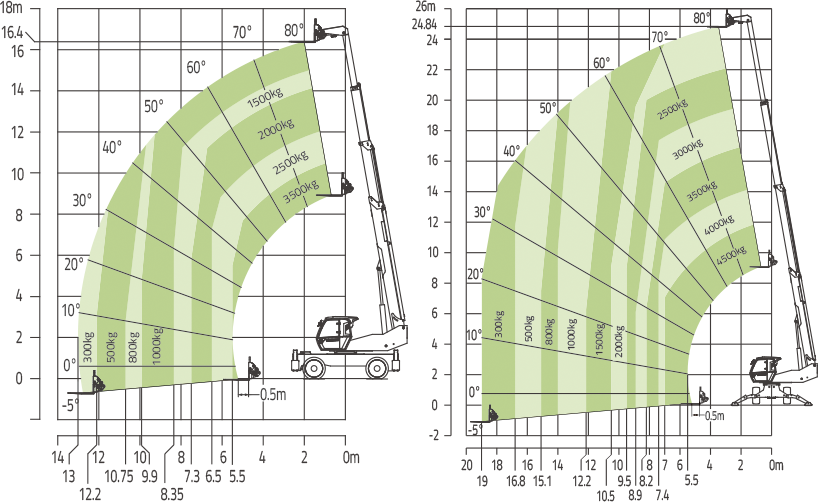

| Max lift height | 24.8m | 81ft 4in |
| Rated capacity | 4500kg | 9920lb |
| Lift capacity at max height | 2000kg | 4409lb |
| Max forward reach | 19m | 62ft 4in |
| Lift capacity at max reach | 300kg | 661lb |
| Weight | 16000kg | 35273lb |
| Max traction force | 90kN | 20232lb |
| Turning radius - outside | 4.2m | 13ft 9in |
| Power | ||
| Engine | Cummins F4.5 | Cummins F4.5 |
| Rated power | 89kw | 119.35Hp |
| Max torque | 500Nm | 368lb*ft |
| Cylinder | 4 | 4 |
| Displacement | 4500ml | 1.18gal |
| Transmission | Hydrodynamic | Hydrodynamic |
| Max drive speed | 40km/h | 24.85mph |
| Steering | 2WS/4WS/Crab | 2WS/4WS/Crab |
| Tire | ||
| Type | 445/65-22.5 | 445/65-22.5 |
| Hydraulic | ||
| Implement pump | Piston pump | Piston pump |
| Hydraulic flow - pressure | 107L/min-270bar | 28.26gal/min-270bar |
| Tank | ||
| Hydraulic tank capacity | 145L | 38.3gal |
| Fuel tank capacity | 140L | 37gal |
| Fork | ||
| Fork size | 1220mm×150mm×50mm | 4ft×5.9in×1.968in |
| Fork rotary | 118° | 118° |
| Working speed | ||
| Boom up/down | 33/19s | 33/19s |
| Boom extend/retract | 30/25s | 30/25s |
| Fork lift | 6s | 6s |
| Fork retract | 5s | 5s |
| Rotate speed | 2.3s | 2.3s |
| Outrigger lowering | 6s | 6s |
| Outrigger retracting | 5s | 5s |
