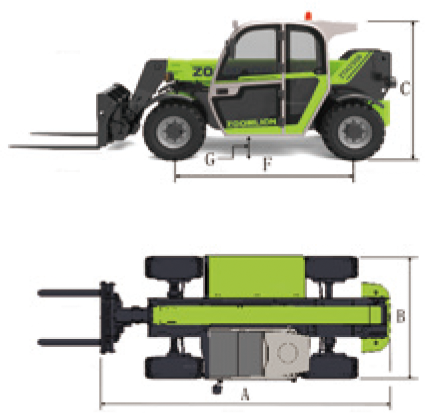

| Size | ||
| A Overall length | 4.79m | 15ft 8in |
| B Overall width | 2.25m | 7ft 4in |
| C Overall height | 2.49m | 8ft 2in |
| F Wheelbase | 2.98m | 9ft 9in |
| G Min ground clearance | 0.44m | 1ft 5in |
| Performance | ||

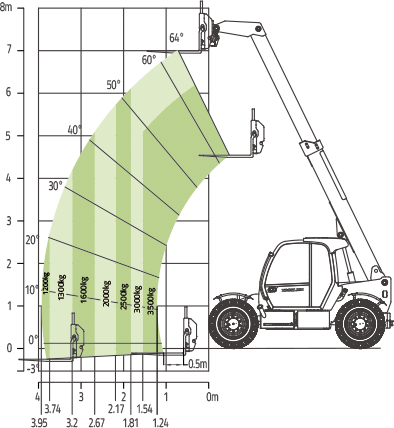

| Max lift height | 7m | 22ft 11in |
| Rated capacity | 3500kg | 7716lb |
| Lift capacity at max height | 3500kg | 7716lb |
| Max forward reach | 3.91m | 12ft 10in |
| Lift capacity at max reach | 1200kg | 2646lb |
| Weight | 7290kg | 16071lb |
| Max traction force | 76kN | 17085lb |
| Frame leveling angle | / | / |
| Turning radius - outside | 3.86m | 12ft 8in |
| Power | ||
| Engine | WEICHAI WP4.1 | WEICHAI WP4.1 |
| Rated power | 74kw | 99Hp |
| Max torque | 420Nm | 310lb*ft |
| Cylinder | 4 | 4 |
| Displacement | 4088m | l1.08gal |
| Transmission | Hydrodynamic | Hydrodynamic |
| Max drive speed | 33.8km/h | 21.75mph |
| Steering | 2WS/4WS/Crab | 2WS/4WS/Crab |
| Tire | ||
| Type | 400/70R24 | 400/70R24 |
| Hydraulic | ||
| Implement pump | Gear pump | Gear pump |
| Hydraulic flow - pressure | 110L/min-270bar | 29gal/min-270bar |
| Tank | ||
| Hydraulic tank capacity | 140L | 37gal |
| Fuel tank capacity | 145L | 38.3gal |
| Fork | ||
| Fork size | 1220mm×122mm×50mm | 4ft×4.8in×1.968in |
| Fork rotary | 147° | 147° |
| Working speed | ||
| Boom up/down | 7.04/5.04s | 7.04/5.04s |
| Boom extend/retract | 7.82/5.55s | 7.82/5.55s |
| Fork lift | 5s | 5s |
| Fork retract | 4s | 4s |
