| Size | ||
| A Overall length | 4.01m | 13ft 2in |
| B Overall width | 1.83m | 6ft |
| C Overall height | 1.95m | 6ft 5in |
| F Wheelbase | 2.35m | 7ft 8in |
| G Min ground clearance | 0.3m | 1ft |
| Performance | ||

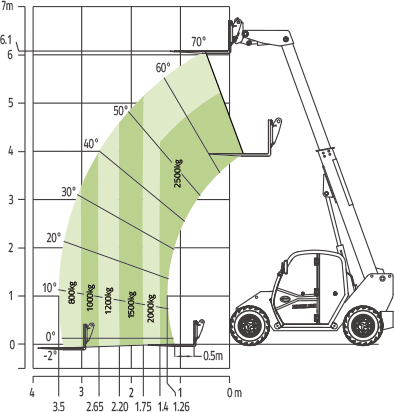

| Max lift height | 6.1m | 20ft |
| Rated capacity | 2500kg | 5510lb |
| Lift capacity at max height | 2000kg | 4410lb |
| Max forward reach | 3.5m | 11ft 6in |
| Lift capacity at max reach | 800kg | 1760lb |
| Weight | 5000kg | 11010lb |
| Max traction force | 73.25kN | 16467lb |
| Frame leveling angle | / | / |
| Turning radius - outside | 3.38m | 11ft 1in |
| Power | ||
| Engine | KUBOTA V3307-CR-TE5 | KUBOTA V3307-CR-TE5 |
| Rated power | 55.4kw | 74.3Hp |
| Max torque | 265Nm | 195lb*ft |
| Cylinder | 4 | 4 |
| Displacement | 3310m | l0.73gal |
| Transmission | Hydrodynamic | Hydrodynamic |
| Max drive speed | 27km/h | 17mph |
| Steering | 2WS/4WS/Crab | 2WS/4WS/Crab |
| Tire | ||
| Type | 12.00-16.5-12PR | 12.00-16.5-12PR |
| Hydraulic | ||
| Implement pump | Gear pump | Gear pump |
| Hydraulic flow - pressure | 88L/min-270bar | 23.3gal/min-270bar |
| Tank | ||
| Hydraulic tank capacity | 100L | 26.4gal |
| Fuel tank capacity | 65L | 17gal |
| Fork | ||
| Fork size | 1220mm×122mm×45mm | 4ft×4.8in×1.77in |
| Fork rotary | 132° | 132° |
| Working speed | ||
| Boom up/down | 7.9/5.2s | 7.9/5.2s |
| Boom extend/retract | 5.7/4.5s | 5.7/4.5s |
| Fork lift | 3.5s | 3.5s |
| Fork retract | 3.5s | 3.5s |
