Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.
CE/ANSI/CSA Certified

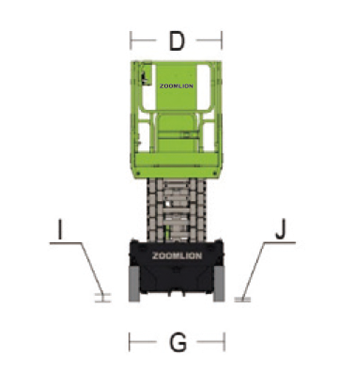

| Size | ||
| Work Height (lndoor/Outdoor) | 12.00m/9.00m | |
| A- Platform Height-Elevated (Indoor/Outdoor) | 10.00m/7.00m | |
| B - Platform Height -Stowed | 1.39m | |
| C- Platform Length | 2.30m | |
| D- Platform Width | 0.81m | |
| Platform Extension | 0.91m | |
| E- Overall Height (Rails Up) | 2.53m | |
| Overall Height (Rails Down) | 2m | |
| F- Overall Length | 2.49m | |
| G - Overall Width | 1.15m | |
| H - Wheelbase | 1.85m | |
| I- Ground Clearance (Stowed) | 0.11m | |
| J- Ground Clearance (Raised) | 0.02m | |
| Performance | ||
| Platform Capacity | 250kg | |
| Capacity on Deck Extension | 113kg | |
| Max. Number of Workers (Indoor/Outdoor) | 2/1 | |
| Drive Speed (Stowed) | 4km/h | |
| Drive Speed (Raised) | 0.8km/h | |
| Turning Radius (Inside) | 0.1m | |
| Turning Radius (Outside) | 2.2m | |
| Lifting Motor | 24V/3.3KW | |
| Drive Motor | 24V/2×0.75KW | |
| Up/Down Time | 55s/42s | |
| Gradeability | 25%(14°) | |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | |
| Control | Proportional Control | |
| Drive | Front Wheels | |
| Brake | Front Wheels | |
| Tire | ∅381mm×127mm | |
| Power | ||
| Battery | 230Ah Li-ion | |
| Charger | 24V/30A | |
| Charger (option) | ||
| Weight | ||
| Gross | 2930KG | |
