Driven by hydraulic motor with low center of gravity and stable operation, highly adapted to harsh conditions.
| Size | ||
| Work Height | 10.00m | 32ft 10in |

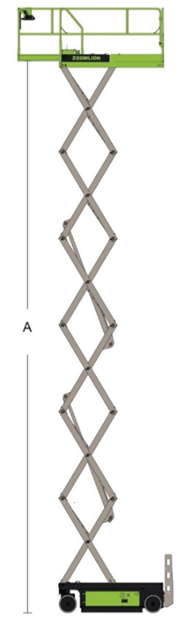

| A- Platform Height -Elevated | 8.00m | 26ft 3in |

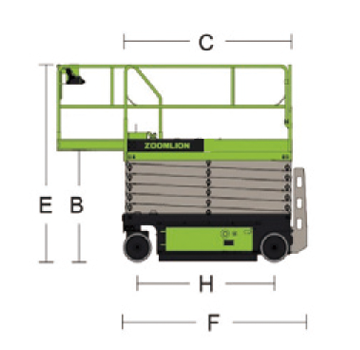

| B - Platform Height Stowed | 1.26m | 4ft 2in |
| C- Platform Length | 2.30m | 7ft 7in |

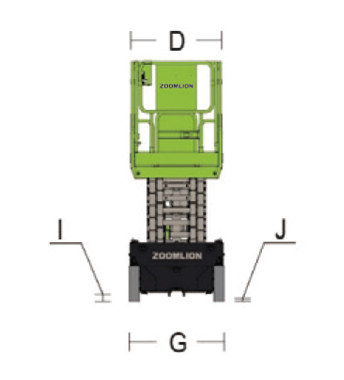

| D - Platform Width | 1.12m | 3ft 8in |
| Platform Extension | 0.91m | 3ft |
| E- Overall Height (RailsUp) | 2.4m | 7ft 11in |
| Overall Height (Rails Down) | 1.73m | 5ft 8in |
| F- Overall Length | 2.49m | 8ft 2in |
| G- Overall Width | 1.15m | 3ft 9in |
| H Wheelbase | 1.85m | 6ft 1in |
| I- Ground Clearance (Stowed) | 0.11m | 4.5in |
| J- Ground Clearance (Raised) | 0.02m | 0.75in |
| Performance | ||
| Platform Capacity | 450kg | 990lb |
| Capacity on Deck Extension | 113kg | 250lb |
| Max. Number of Workers | 2/1 | 2/1 |
| Drive Speed (Stowed) | 3.5km/h | 2.2mph |
| Drive Speed (Raised) | 0.8km/h | 0.5mph |
| Turning Radius (Inside) | 0.1m | 4in |
| Turning Radius (Outside) | 2.2m | 7ft 3in |
| Up/Down Drive Motor | 24V/3.3KW | 24V/3.3KW |
| Up/Down Time | 31s/40s | 31s/40s |
| Gradeability | 25%(14°) | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° |
| Control | Proportional Control | Proportional Control |
| Drive | Front Wheels | Front Wheels |
| Brake | ||
| Tire | ∅381mm×127mm | ∅381mm×127mm |
| Power | ||
| Battery | 230Ah Li-ion | 230Ah Li-ion |
| Charger | 24V/30A | 24V/30A |
| Weight | ||
| Gross | 2320kg | 5115lb |
