| Size | ||
| Platform Height | 7.91m | |

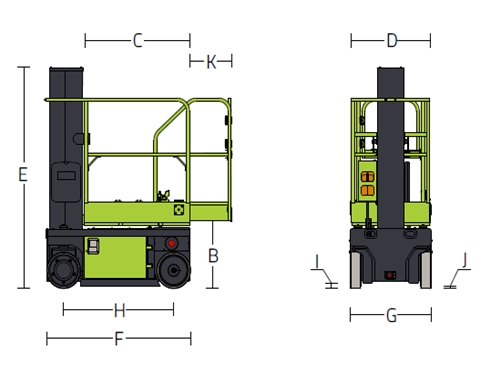

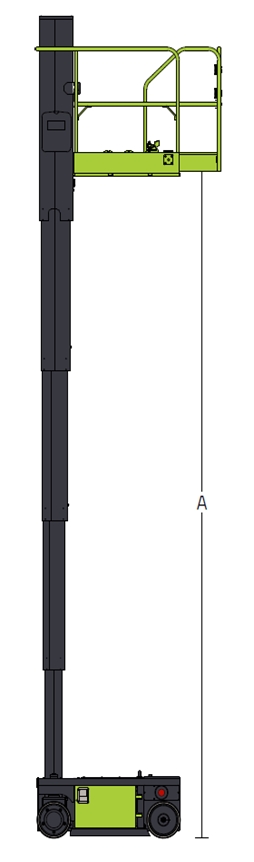

| A - Platform Height-Elevated | 5.91m | |
| B - Platform Height-Stowed | 0.74m | |
| C - Platform Length | 1.02m | |
| D - Platform Width | 0.76m | |
| K-Platform Extension | 0.5m | |
| E - Overall Height | 1.99m | |
| F - Overall Length | 1.39m | |
| G - Overall Width | 0.78m | |
| H - Wheelbase | 1.06m | |
| I - Ground Clearance (Stowed) | 0.065m | |
| J - Ground Clearance (Raised) | 0.017m | |
| Performance | ||
| Platform Capacity | 200kg | |
| Max. Number of Workers(indoor/outdoor) | 2/1 | |
| Drive Speed (Stowed) | 4km/h | |
| Drive Speed (Raised) | 0.5km/h | |
| Turning Radius (Inside) | 0.14m | |
| Turning Radius (Outside) | 1.43m | |
| Lifting Motor | ||
| Drive Motor | 24V/2×0.6KW | |
| Up/Down Time | 18/21s | |
| Gradeability | 25%(14°） | |
| Max. Working Slope | 1.5°/3° | |
| Control | Proportional control | |
| Drive | Front wheels | |
| Tire | Front wheels | |
| Power | ||
| Battery | 120Ah | |
| Charger | 24V/30A | |
| Weight | ||
| Gross | 900kg | |
