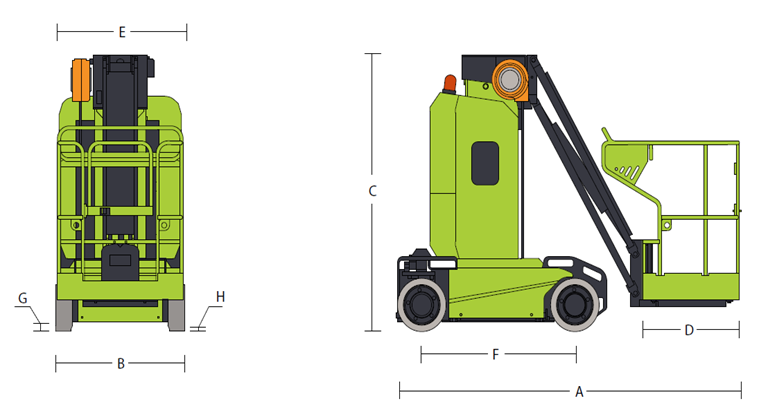

| Size | ||
| Platform Height | 10m | 32ft 10in |
| A - Platform Height-Elevated | 8m | 26ft 3in |
| B - Platform Height-Stowed | - | - |
| C - Platform Length | 0.76m | 2ft 6in |
| D - Platform Width | 0.99m | 3ft 3in |
| K-Platform Extension | - | - |
| E - Overall Height | 1.99m | 6ft 6in |
| F - Overall Length | 0.76m | 2ft 6in |
| G - Overall Width | 0.99m | 3ft 3in |
| H - Wheelbase | 1.2m | 3ft 11in |
| I - Ground Clearance (Stowed) | 0.065m | 2.6in |
| J - Ground Clearance (Raised) | - | - |
| Performance | ||
| Platform Capacity | 200kg | 440lb |
| Max. Number of Workers(indoor/outdoor) | 2/1 | 2/1 |
| Drive Speed (Stowed) | 4.5km/h | 2.80mph |
| Drive Speed (Raised) | 0.5km/h | 0.31mph |
| Turning Radius (Inside) | 0.2m | 8in |
| Turning Radius (Outside) | 1.61m | 5ft 4in |
| Lifting Motor | AC 24V/3kW | AC 24V/3kW |
| Drive Motor | AC 24V/2x0.7kW | AC 24V/2x0.7kW |
| Up/Down Time | 38/40s | 38/40s |
| Gradeability | 25%（14°） | 25%（14°） |
| Max. Working Slope | 3° | 3° |
| Control | Proportional control | Proportional control |
| Drive | Rear wheels | Rear wheels |
| Tire | Ø381mmx127mm | Ø381mmx127mm |
| Power | ||
| Battery | 4×6V/240Ah(C5) | 4×6V/240Ah(C5) |
| Charger | 24V/30A | 24V/30A |
| Weight | ||
| Gross | 2670kg | 5886lb |
