Non-Rotating

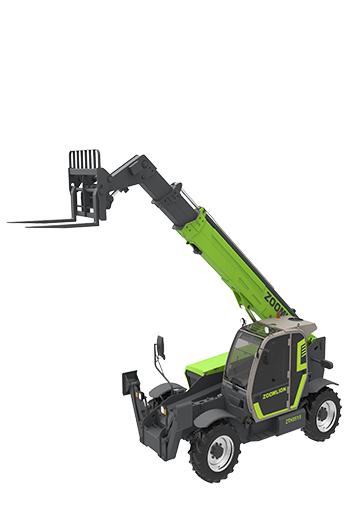

ZTH3513

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.

Comply with CE Standard

ZTH3513
  • Max. Working Height
    12.7m
    Max.Working Height
  • Platform Capacity
    3500kg
    Platform Capacity
  • Weight
    9880kg
    Weight
HIGHLIGHT
  • Strong power chassis with excellent driving performance and off-road capacity

    4×4 drive system, front and rear driving axle with antislip differential gear for great traction force and escape ability

    Hydraulic cylinder driven extension system for smooth movement, strong capacity and large work envolope

    10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience

    Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers

ZTH3513
Specs
Model Example
Size
A Overall length 5.84m 19ft 2in
B Overall width 2.28m 7ft 6in
C Overall height 2.55m 8ft 5in
F Wheelbase 3.07m 10ft 1in
G Min ground clearance 0.42m 1ft 4in
Performance
Max lift height 12.7m 41ft 8in
Rated capacity 3500kg 7716lb
Lift capacity at max height 3500kg 7716lb
Max forward reach 8.73m 28ft 7in
Lift capacity at max reach 1000kg 2204lb
Weight 9880kg 21781lb
Max traction force 82kN 18434lb
Frame leveling angle ±10° ±10°
Turning radius - outside 3.8m 12ft 6in
Power
Engine Cummins QSF 3.8 L Cummins QSF 3.8 L
Rated power 74kw55KW(EUⅤ) 99.2Hp74Hp
Max torque 420Nm 310lb*ft
Cylinder 4 4
Displacement 3760m l0.99gal
Transmission Hydrodynamic Hydrodynamic
Max drive speed 35km/h 21.75mph
Steering 2WS/4WS/Crab 2WS/4WS/Crab
Tire
Type 400/70R24 400/70R24
Hydraulic
Implement pump Piston pump Piston pump
Hydraulic flow - pressure 132L/min-270bar 34.87gal/min-270bar
Tank
Hydraulic tank capacity 140L 37gal
Fuel tank capacity 145L 38.3gal
Fork
Fork size 1220mm×122mm×50mm 4ft×4.8in×1.968in
Fork rotary 126° 126°
Working speed
Boom up/down 10.2/8s 10.2/8s
Boom extend/retract 12.7/8s 12.7/8s
Fork lift 4.6s 4.6s
Fork retract 4s 4s
