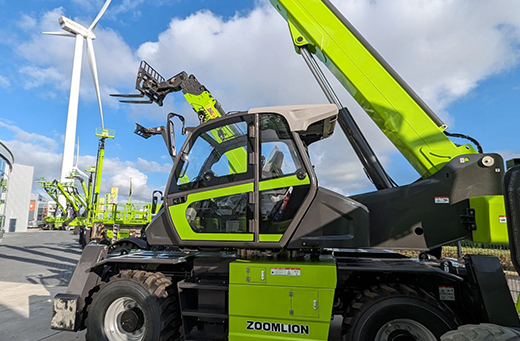

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.
CE Certified
Hydrostatic driving for comfort driving experience and fast traveling speed
4×4 driving system provides large traction force and good off-road ability
360° continuous rotating, large working range, adapt to various working conditions
10.1-inch display screen integrates monitoring, control and entertainment, with a good human-computer interaction experience
Standard floating fork and optional platform, bucket, boom and other attachments meet the diverse needs of customers
| Size | ||
| A Overall length | 9.28m | 30ft 5in |
| B Overall width | 2.48m | 8ft 2in |
| C Overall height | 3.15m | 10ft 4in |
| F Wheelbase | 3.07m | 10ft 1in |
| G Min ground clearance | 0.35m | 1ft 2in |
| Performance | ||
| Max lift height | 24.8m | 81ft 4in |
| Rated capacity | 4500kg | 9920lb |
| Lift capacity at max height | 2000kg | 4409lb |
| Max forward reach | 19m | 62ft 4in |
| Lift capacity at max reach | 300kg | 661lb |
| Weight | 17000kg | 37479lb |
| Max traction force | 82kN | 18434lb |
| Turning radius - outside | 4.2m | 13ft 9in |
| Power | ||
| Engine | Cummins QSF3.8_02/Cummins F4.5/Cummins F3.8_01 | Cummins QSF3.8_02/Cummins F4.5/Cummins F3.8_01 |
| Rated power | 93/89/90kw | 125/119/121Hp |
| Max torque | 500Nm | 368lb*ft |
| Cylinder | 4 | 4 |
| Displacement | 3800/4500/3800ml | 1.18gal1gal |
| Transmission | Hydrostatic | Hydrostatic |
| Max drive speed | 32km/h | 19.88mph |
| Steering | Front Wheel/4WS/Crab | Front Wheels/4WS/Crab |
| Tire | ||
| Type | 445/65-22.5 | 445/65-22.5 |
| Hydraulic | ||
| Implement pump | Piston pump | Piston pump |
| Hydraulic flow - pressure | 107L/min-280bar | 28.26gal/min-280bar |
| Tank | ||
| Hydraulic tank capacity | 150L | 39.6al |
| Fuel tank capacity | 140L | 37gal |
| Fork | ||
| Fork size | 1220mm×150mm×50mm | 4ft×5.9in×1.968in |
| Fork rotary | 118° | 118° |
| Working speed | ||
| Boom up/down | 37/23s | 37/23s |
| Boom extend/retract | 38/36s | 38/36s |
| Fork lift | 6s | 6s |
| Fork retract | 5s | 5s |
| Rotate speed | 2.3r/min | 2.3r/min |
| Outrigger lowering | 6s | 6s |
| Outrigger retracting | 5s | 5s |
