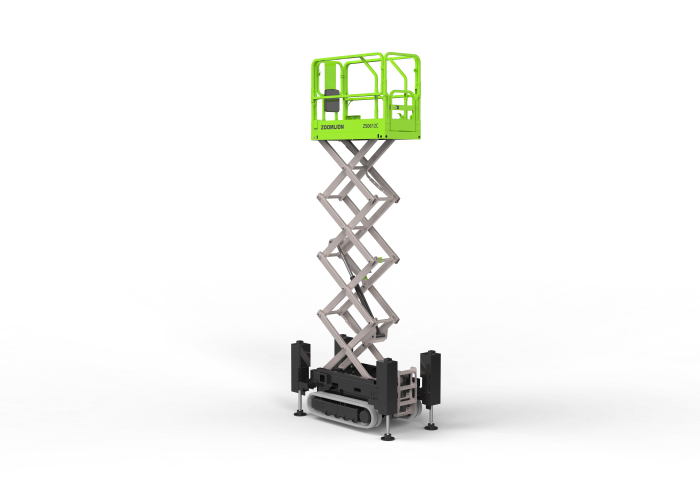

Crawler scissor lifts provide customers with new options for working at height across rough and unstable terrain.
CE Certified
| Size | ||
| Work Height | 7.8m | 25ft 7in |
| A Platform Height-Elevated | 5.8m | 19ft |
| B Platform Height- -Stowed | 1.13m | 3ft 8in |
| C Platform Length | 1.65m | 5ft 5in |
| D Platform Width | 0.74m | 2ft 5in |
| Platform Extension | 0.9m | 2ft 11in |
| E Overall Height (Rails Up) | 2.27m | 7ft 5in |
| Overall Height (Rails Down) | 1.88m | 6ft 2in |
| F Overall Length | 2.19m | 7ft 2in |
| G Overall Width | 1.15m | 3ft 9in |
| H Ground Clearance | 0.08m | 3in |
| Performance | ||
| Platform Capacity | 230kg | 510lb |
| Capacity on Deck Extension | 113kg | 250lb |
| Max. Number of Workers | 2 | |
| Drive Speed (Stowed) | 2km/h | 1.25mph |
| Drive Speed (Raised) | 0km/h | 0km/h |
| Turning Radius | 0m | 0m |
| Drive Motor | 24V/2×2KW | |
| Up/Down Time | 20/24s | |
| Gradeability | 30%（17°） | |
| Max. Working Slope (Lateral/Vertical) | 12°/7° | |
| Drive | Rear Wheels | |
| Brake | Rear Wheels | |
| Power | ||
| Battery | 4×12V/240Ah | |
| Charger | 24V/30A | |
| Weight | ||
| Gross | 1900kg | 4188lb |
