Diesel
ZT14J

Diesel-powered telescopic boom lifts can get the work done at height with super efficiency in large-scale, outdoor constructions and industrial applications.

CE/ANSI/CSA Certified

ZT14J
  • Max. Working Height
    16.6m
    Max.Working Height
  • Platform Capacity
    300/454kg
    Platform Capacity
  • Weight
    8500kg
    Weight
ZT14J
Specs
Model Example
Size
Work Height 16.6m 54ft 6in
Platform Height 14.6m 47ft 11in
Horizontal Outreach 12.7m 41ft 8in

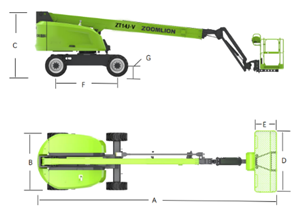

A - Stowed Length 9.6m 31ft 6in
B - Stowed Width 2.28m 7ft 6in
C - Stowed Height 2.52m 8ft 3in
D - Platform Length 2.44m 8ft
E - Platform Width 0.91m 3ft
F - Wheelbase 2.36m 7ft 9in
Tread 2.28m 7ft 6in
G - Ground Clearance 0.36m 1ft 2in
Performance
Platform Capacity (Unrestricted/Restricted) 300/454kg 660/1000lb
Drive Speed (Stowed) 5.5km/h 3.42mph
Gradeability 45%(24°) 45%(24°)
Turning Radius (Inside) 2.06m 6ft 9in
Turning Radius (Outside) 4.78m 15ft 8in
Turntable Swing 360° continuous 360° continuous
Platform Rotation ±90° ±90°
Tail Swing 0.9m 2ft 11in
Jib (Range of Articulation) / /
Max. Wind Speed 12.5m/s 28mph
Power
Engine KUBOTA V2403(Stage Ⅴ) KUBOTA V2403(Stage Ⅲ) KUBOTA V2403(Stage Ⅴ) KUBOTA V2403(Stage Ⅲ)
Fuel Tank Capacity 150L 39.6 (us gal)
Control Voltage 12V DC 12V DC
Hydraulic Tank Capacity 90L 23.8 gal
Drive Mode 4WD 4WD
Steering Mode Front-wheel Front-wheel
Tire
Type Foam-filled tire Foam-filled tire
Weight
Gross 8500kg 18739lb
