| Size | ||
| Work Height | 82.3m | 270ft |
| Platform Height | 80.3m | 263ft 5in |
| Horizontal Outreach | 35.9m | 11ft 9in |

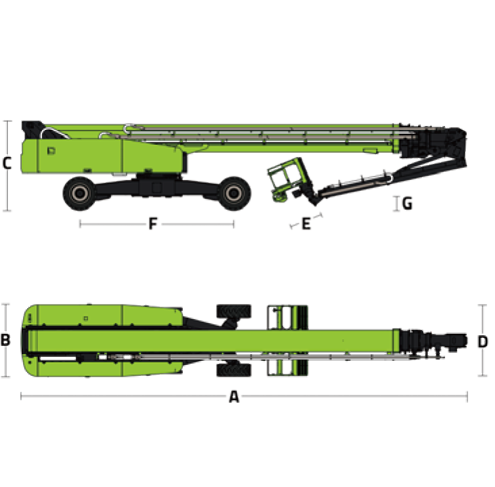

| A - Stowed Length | 17.5m | 57ft 5in |
| B - Stowed Width | 2.8m | 9ft 2in |
| C - Stowed Height | 3.27m | 10ft 8in |
| D - Platform Length | 2.44m | 8ft |
| E - Platform Width | 0.91m | 3ft |
| F - Wheelbase | 6.26/7.25m | 20ft 6in/23ft 9in |
| Tread | / | / |
| G - Ground Clearance | 0.5m | 1ft 8in |
| Performance | ||
| Platform Capacity (Unrestricted/Restricted) | 230/300/454kg | 510/660/1000lb |
| Drive Speed (Stowed) | 4km/h | 4km/h |
| Gradeability | 35%（19°） | 35%（19°） |
| Turning Radius (Inside) | 11.17/3.41m | 36ft 8in/11ft 2in |
| Turning Radius (Outside) | 13.91/9.05m | 45ft 8in/29ft 8in |
| Turntable Swing | 360° continuous | 360° continuous |
| Platform Rotation | ±90° | ±90° |
| Tail Swing | 2.35m | 7ft 8in |
| Jib (Range of Articulation) | 125°（﹣55°~70°） | 125°（﹣55°~70°） |
| Max. Wind Speed | 12.5m/s | 28mph |
| Power | ||
| Engine | Cummins F4.5 | Cummins F4.5 |
| Fuel Tank Capacity | 200L | 52.8 us gal |
| Control Voltage | 12V DC | 12V DC |
| Hydraulic Tank Capacity | 740L | 195 us gal |
| Drive Mode | 4WD | 4WD |
| Steering Mode | 4WS/Front wheel/Crab | 4WS/Front wheel/Crab |
| Tire | ||
| Type | Foam-filled Tires | Foam-filled Tires |
| Weight | ||
| Gross | 48800kg | 107585lbs |
