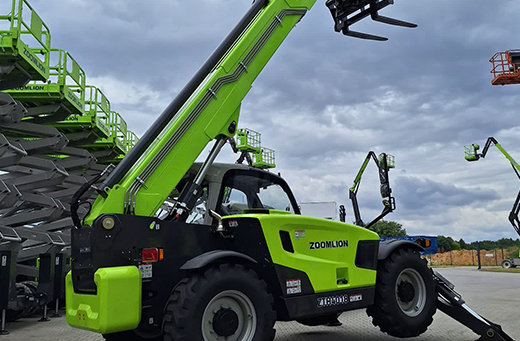

Zoomlion telehandler highlights safety and intelligence, featuring stable boom extension, excellent off-road ability and great gradeability.
CE Certified
| Size | ||
| A Overall length | 6.48m | 21ft 3in |
| B Overall width | 2.28m | 7ft 6in |
| C Overall height | 2.57m | 8ft 5in |
| F Wheelbase | 3.07m | 10ft 1in |
| G Min ground clearance | 0.42m | 1ft 5in |
| Performance | ||
| Max lift height | 17.6m | 57ft 9in |
| Rated capacity | 4000kg | 8818lb |
| Lift capacity at max height | 2500kg | 5511lb |
| Max forward reach | 13.4m | 43ft 11in |
| Lift capacity at max reach | 850kg | 1873lb |
| Weight | 12700kg | 27998lb |
| Max traction force | 71kN | 15961lbf |
| Frame leveling angle | ±10° | ±10° |
| Turning radius - outside | 3.8m | 12ft 6in |
| Power | ||
| Engine | Cummins QSF 3.8/Cummins F3.8 | Cummins QSF 3.8/Cummins F3.8 |
| Rated power | 73/55kW | 98/74HP |
| Max torque | 420/400Nm | 310/295lb*ft |
| Cylinder | 4 | 4 |
| Displacement | 3760ml | 0.99gal |
| Transmission | Hydraulic | Hydraulic |
| Max drive speed | 30/25km/h | 18.64/15.5mph |
| Steering | Front wheels/4WS/Crab | Front wheels/4WS/Crab |
| Tire | ||
| Type | 400/80R24 | 400/80R24 |
| Hydraulic | ||
| Implement pump | Piston pump | Piston pump |
| Hydraulic flow - pressure | 150L/min 280bar | 39.63gal/min 280bar |
| Tank | ||
| Hydraulic tank capacity | 145L | 38.3gal |
| Fuel tank capacity | 145L | 38.3gal |
| Fork | ||
| Fork size | 1220mm× 122mm×50mm | 4ft×4.8in× 1.968in |
| Fork rotary | 126° | 126° |
| Working speed | ||
| Boom up/down | 18/13s | 18/13s |
| Boom extend/retract | 17/17s | 17/17s |
| Fork lift | 5s | 5s |
| Fork retract | 5s | 5s |
