1. Advanced 4WD system with a 3-forward/2-reverse transmission enables on-demand part-time 4WD, allowing seamless switching between 2WD and 4WD modes.
2. Wide-view mast delivers exceptional visibility, significantly expanding the operator’s field of vision during operation.
3. ROPS frame connected via rubber isolators (replacing rigid mounts) reduces machine vibration for smoother travel.
4. Deep-tread off-road tires on all axles ensure superior traction and adaptability to complex terrain.
| Power type | DIESEL |

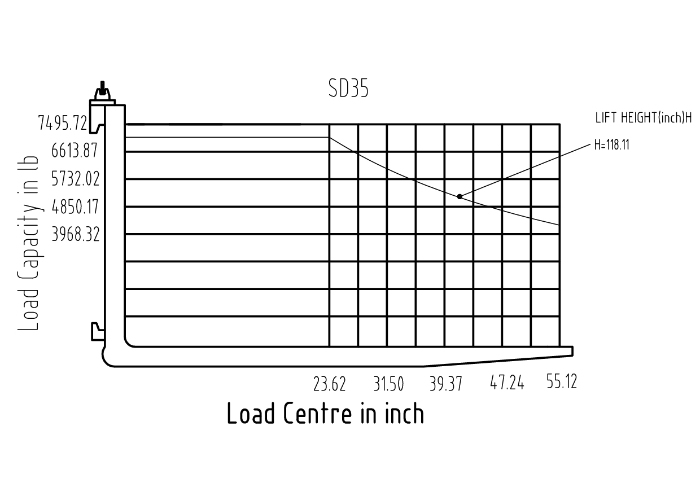

| Rated capacity | 7716lb |
| Load centre | 1.64ft |
| Self weight | 19401lb |
| Lifting height | 9.84ft |
| Free lift | 0.52ft |
| Fork size (L*W*T) | 3.51*0.41*0.16ft |
| Mast tilt angle (F/R) | 10°-12°Deg |
| Overhang(F/R) | 1.98*2.05ft |
| Min.ground clearance | 0.85ft |
| Length to face of fork (without fork) | 10.19ft |
| Overall width | 5.55ft |
| Mast lowered height | 7.53ft |
| Mast extended height (with backrest) | 13.65ft |
| Overhead guard height | 7.45ft |
| Turning radius | 11.58ft |
| Min.right angle stacking aisle width | 17.73ft |
| Travel (Laden/Unladen) | 10.6/11.8mph |
| Lifting(Laden) | 16.54in/s |
| Lowering(Laden) | ＜23.62in/s |
| Max.Drawbar pull (Laden) | 30KN |
| Max.Gradeability (Laden) | 20% |
| Tyre (Front/Rear) | 14-17.5L-14PR/10.0/75-15.3 |
| Tread (Front/Rear) | 5.35/5.09ft |
| Wheelbase | 6.18ft |
| Engine Model | Kubota V2403-CR-T-EW04/Yangma 4TNE98 |
