1. Fully enclosed instrument panel – dustproof and contamination-resistant, significantly extending the service life of core components.
2. Vehicle-wide hydraulic system adopts 24° cone + O-ring sealing, ensuring reliability and durability.
3. Full-vehicle LED lighting system – high performance, low power consumption, and extended lifespan.
4. Wide-view mast, enhancing operational efficiency and safety.
| Power type | DIESEL/GASOLINE/LPG |

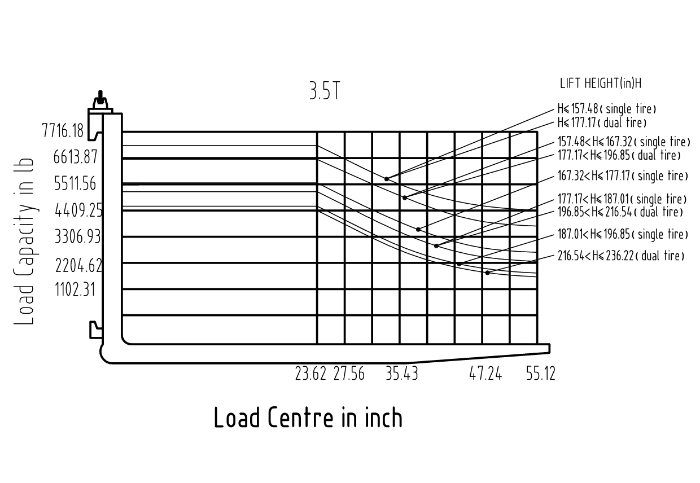

| Rated capacity | 7716lb |
| Load centre | 1.64ft |
| Self weight | 10692lb |
| Lifting height | 9.84ft |
| Free lift | 0.52ft |
| Fork size (L*W*T) | 3.51×0.41×0.16ft |
| Mast tilt angle (F/R) | 6/12Deg |
| Overhang(F/R) | 1.6*1.83ft |
| Min.ground clearance | 0.39ft |
| Length to face of fork (without fork) | 9ft |
| Overall width | 4.04ft |
| Mast lowered height | 6.87ft |
| Mast extended height (with backrest) | 13.96ft |
| Overhead guard height | 7.12ft |
| Turning radius | 8.02ft |
| Min.right angle stacking aisle width | 14.12ft |
| Travel (Laden/Unladen) | 11.81/12.43mph |
| Lifting(Laden) | 16.14in/s |
| Lowering(Laden) | ＜23.62in/s |
| Max.Drawbar pull (Laden) | 18KN |
| Max.Gradeability (Laden) | 20% |
| Tyre (Front/Rear) | 28x9-15-14PR/6.50-10-10PR |
| Tread (Front/Rear) | 3.28/3.18ft |
| Wheelbase | 5.58ft |
| Engine Model | Xinchai C490/Kubota V2403/Kubota WG2503-GL/Isuzu 4JG2/Nissan K25/Mitsubishi S4S |
