Vision Creates Future
1.Wide field-of-vision mast, enhancing operational convenience and safety;
2.Standard LCD instrument panel equipped with a fault diagnosis system, facilitating maintenance with clear and straightforward fault information display;
3.Optional OPS seat sensing system, effectively preventing accidental operation of control levers and ensuring vehicle safety;
4.Full vehicle equipped with standard LED lighting, energy-saving, environmentally friendly, and featuring a long lifespan;
5.24-degree cone + O-ring seals used throughout the vehicle, preventing any leakage.
| Power type | DIESEL/GASOLINE/LPG |

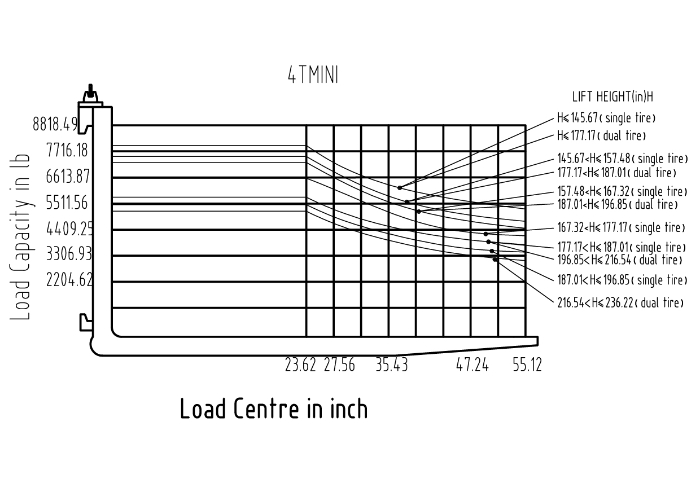

| Rated capacity | 8818lb |
| Load centre | 1.64ft |
| Self weight | 11684.5lb |
| Lifting height | 9.84ft |
| Free lift | 0.28ft |
| Fork size (L*W*T) | 3.51x0.41x0.16ft |
| Mast tilt angle (F/R) | 6°/12°Deg |
| Overhang(F/R) | 1.64*1.77ft |
| Min.ground clearance | 0.41ft |
| Length to face of fork (without fork) | 12.89ft |
| Overall width | 4.63ft |
| Mast lowered height | 7.09ft |
| Mast extended height (with backrest) | 13.7ft |
| Overhead guard height | 6.86ft |
| Turning radius | 8.86ft |
| Min.right angle stacking aisle width | 15ft |
| Travel (Laden/Unladen) | 11.2/11.8mph |
| Lifting(Laden) | 16.3in/s |
| Lowering(Laden) | ＜23.62in/s |
| Max.Drawbar pull (Laden) | 20KN |
| Max.Gradeability (Laden) | 20% |
| Tyre (Front/Rear) | 250-15-16PR/6.50-10-10PR |
| Tread (Front/Rear) | 3.81/3.82ft |
| Wheelbase | 3.81/3.82ft |
| Engine Model | Xinchai A498/Isuzu 4JG2/Kubota WG2503-GL-E3 |
