Vision Creates Future
1.Wide field-of-vision mast, enhancing operational convenience and safety;
2.Standard LCD instrument panel equipped with a fault diagnosis system, facilitating maintenance with clear and straightforward fault information display;
3.Optional OPS seat sensing system, effectively preventing accidental operation of control levers and ensuring vehicle safety;
4.Full vehicle equipped with standard LED lighting, energy-saving, environmentally friendly, and featuring a long lifespan;
5.24-degree cone + O-ring seals used throughout the vehicle, preventing any leakage.
| Power type | DIESEL/GASOLINE/LPG |

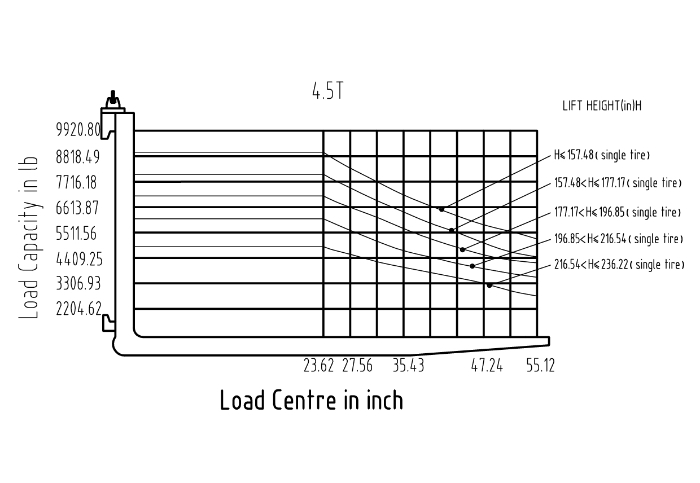

| Rated capacity | 9921lb |
| Load centre | 1.64ft |
| Self weight | 14065.49lb |
| Lifting height | 9.84ft |
| Free lift | 0.46ft |
| Fork size (L*W*T) | 3.51*0.49*0.18ft |
| Mast tilt angle (F/R) | 6°/12°Deg |
| Overhang(F/R) | 1.87/1.77ft |
| Min.ground clearance | 0.52ft |
| Length to face of fork (without fork) | 10.07ft |
| Overall width | 4.89ft |
| Mast lowered height | 7.73ft |
| Mast extended height (with backrest) | 13.88ft |
| Overhead guard height | 7.71ft |
| Turning radius | 9.06ft |
| Min.right angle stacking aisle width | 14.76ft |
| Travel (Laden/Unladen) | 11.19mph |
| Lifting(Laden) | 13.45in/s |
| Lowering(Laden) | 12.47in/s |
| Max.Drawbar pull (Laden) | 22kN |
| Max.Gradeability (Laden) | 20% |
| Tyre (Front/Rear) | 300-15-18PR/7.00-12-12PR |
| Tread (Front/Rear) | 3.87/3.9ft |
| Wheelbase | 6.56ft |
| Engine Model | Mitsubishi S6S-228/Kubota V3307/Yuchai YCF3675-S580/Yuchai YCF3675-T480/Quanchai V35-88C41/Quanchai 4C6-85U32/Xinchai 4D35ZG31 |
