1. Spacious and comfortable cab with adjustable seat and control levers, reducing operator fatigue
2. Optimized hydraulic circuit design for smooth operation and efficient energy utilization
3. High-performance engine paired with hydrostatic transmission, delivering robust power output and torque
4. Reinforced chassis and mast structure ensuring structural stability and durability under heavy-duty operations
5. Tilting cab significantly enhancing maintenance and servicing efficiency.
| Power type | DIESEL |

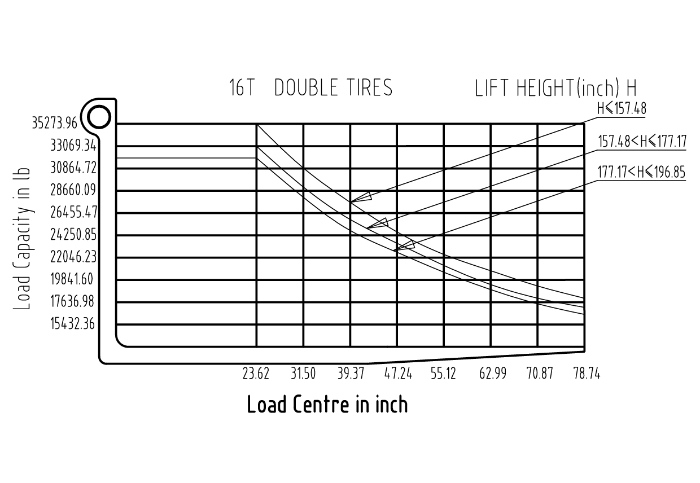

| Rated capacity | 35274lb |
| Load centre | 3.94ft |
| Self weight | 56438lb |
| Lifting height | 13.12ft |
| Free lift | 0ft |
| Fork size (L*W*T) | 7.87×0.82×0.33 |
| Mast tilt angle (F/R) | 6°/12°Deg |
| Overhang(F/R) | 3.44×3.15 |
| Min.ground clearance | 1.05 |
| Length to face of fork (without fork) | 19.06 |
| Overall width | 9.07 |
| Mast lowered height | 11.02 |
| Mast extended height (with backrest) | 15.93 |
| Overhead guard height | 10.07 |
| Turning radius | 17.52 |
| Min.right angle stacking aisle width | 30.28 |
| Travel (Laden/Unladen) | 15.53/20.82mile/h |
| Lifting(Laden) | 12.6in/s |
| Lowering(Laden) | 14.7in/s |
| Max.Drawbar pull (Laden) | 195KN |
| Max.Gradeability (Laden) | 36% |
| Tyre (Front/Rear) | 4-12.00-24-20PR/2-12.00-20-20PR |
| Tread (Front/Rear) | 6.83/6.96 |
| Wheelbase | 12.47 |
| Engine Model | Cummins B6.7 |
