1.Suspension seat, adjustable steering wheel, and side-mounted control lever design;
2.Waterproof connectors, hydraulic protection, imported components, and dual-core intelligent control for enhanced safety;
3.90° maximum steering angle, minimal turning radius, enabling 360° in-place rotation;
4.High-capacity fast-charging lithium battery, fully charges in 2-3 hours, with long battery life.
| Power type | Battery |

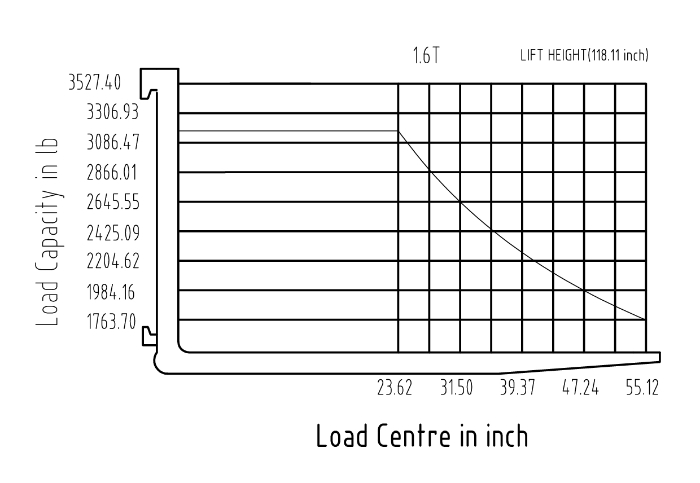

| Rated capacity | 3,527.40lb |
| Load centre | 19.69in |
| Self weight | 6,990.78lb |
| Lifting height | 118.11in |
| Free lift | 43.54in |
| Fork size (L*W*T) | 36.22×3.94×1.57in |
| Mast tilt angle (F/R) | 6/6.5Deg |
| Overhang(F/R) | 15.87/7.95in |
| Min.ground clearance | 3.54in |
| Length to face of fork (without fork) | 77.36in |
| Overall width | 42.91in |
| Mast lowered height | 79.53in |
| Mast extended height (with backrest) | 158.43in |
| Overhead guard height | 80.71in |
| Turning radius | 62.01in |
| Min.right angle stacking aisle width | 129.88in |
| Travel (Laden/Unladen) | 8.08/8.70mph |
| Lifting(Laden) | 12.60in/s |
| Lowering(Laden) | 15.94in/s |
| Max.Drawbar pull (Laden) | 3,079.89lbf |
| Max.Gradeability (Laden) | 12% |
| Tyre (Front/Rear) | 18×7-8/15×4.5-8 |
| Tread (Front/Rear) | 36.22/7.09in |
| Wheelbase | 53.54in |
| Battery(Voltage) | 48V |
| Battery(Capacity) | 500Ah |
| Rated power (Walking) | 6.44×2hp |
| Lift power | 14.75hp |
| Working pressure | 2,538.17psi |
