Vision Creates Future
1.Wide-view mast design provides excellent forward visibility; Large boarding assist handle and spacious cabin accommodate operators of various heights.
2.Multi-tiered electrical protection featuring waterproof connectors; Multi-section valve with descent locking function; Parking safety reminder system.
3.High ground clearance chassis design provides enhanced passability, enabling adaptation to complex outdoor terrain.
4.Rear-positioned valve control levers ensure ergonomic and comfortable operation.
| Power type | Battery |
| Rated capacity | 5511.6lb |

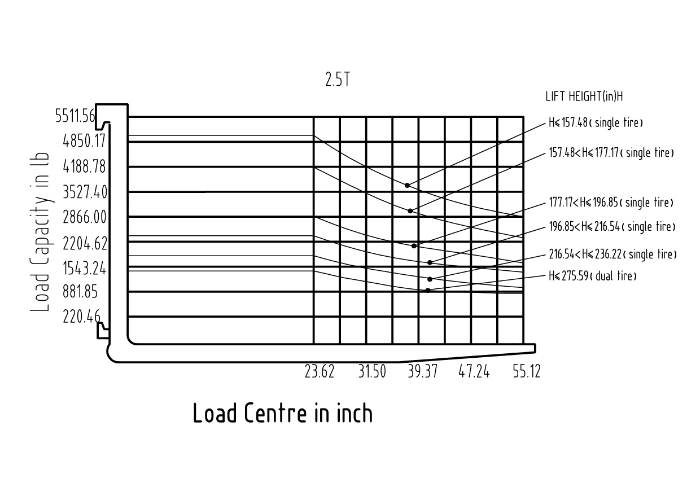

| Load centre | 19.69in |
| Self weight | 9457.8lb |
| Lifting height | 118.11in |
| Free lift | 5.71in |
| Fork size (L*W*T) | 42.13×4.80×1.57in |
| Mast tilt angle (F/R) | 6/10Deg |
| Overhang(F/R) | 18.70×12.28in |
| Min.ground clearance | 4.72in |
| Length to face of fork (without fork) | 94.02in |
| Overall width | 45.08in |
| Mast lowered height | 78.35in |
| Mast extended height (with backrest) | 159.06in |
| Overhead guard height | 88.19in |
| Turning radius | 90.83in |
| Min.right angle stacking aisle width | 168.23in |
| Travel (Laden/Unladen) | 9.01/9.32mph |
| Lifting(Laden) | 12.99in/s |
| Lowering(Laden) | 16.54in/s |
| Max.Drawbar pull (Laden) | 2248.1lbf |
| Max.Gradeability (Laden) | 15% |
| Tyre (Front/Rear) | 7.00-12-12PR/18x7-8-14PR |
| Tread (Front/Rear) | 37.83/37.40in |
| Wheelbase | 62.99in |
| Battery(Voltage) | 48V |
| Battery(Capacity) | 500Ah |
| Rated power (Walking) | 18.77hp |
| Lift power | 16.09hp |
| Working pressure | 2538.2psi |
