Vision Creates Future
1.Wide-view mast design provides excellent forward visibility; Large boarding assist handle and spacious cabin accommodate operators of various heights.
2.Multi-tiered electrical protection featuring waterproof connectors; Multi-section valve with descent locking function; Parking safety reminder system.
3.High ground clearance chassis design provides enhanced passability, enabling adaptation to complex outdoor terrain.
4.Rear-positioned valve control levers ensure ergonomic and comfortable operation.
| Power type | Battery |

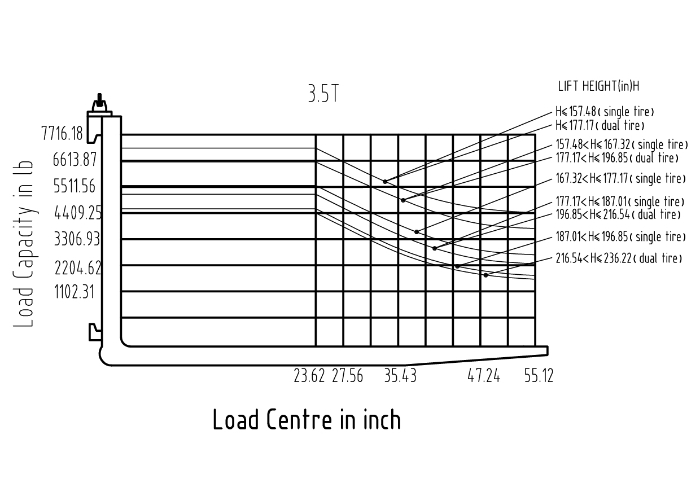

| Rated capacity | 7716.2lb |
| Load centre | 19.69in |
| Self weight | 11464lb |
| Lifting height | 118.11in |
| Free lift | 6.3in |
| Fork size (L*W*T) | 42.13×4.92×1.97in |
| Mast tilt angle (F/R) | 6/10Deg |
| Overhang(F/R) | 18.70×13.23in |
| Min.ground clearance | 4.33in |
| Length to face of fork (without fork) | 101.10in |
| Overall width | 49.80in |
| Mast lowered height | 84.84in |
| Mast extended height (with backrest) | 167.80in |
| Overhead guard height | 88.98in |
| Turning radius | 89.33in |
| Min.right angle stacking aisle width | 158.54in |
| Travel (Laden/Unladen) | 9.01/9.32mph |
| Lifting(Laden) | 11.02in/s |
| Lowering(Laden) | 18.74in |
| Max.Drawbar pull (Laden) | 2697.7lbf |
| Max.Gradeability (Laden) | 15% |
| Tyre (Front/Rear) | 28x9-15-14PR/200x50-10-14PR |
| Tread (Front/Rear) | 39.37/40.08in |
| Wheelbase | 68.90in |
| Battery(Voltage) | 80V |
| Battery(Capacity) | 500Ah |
| Rated power (Walking) | 21.86hp |
| Lift power | 33.53hp |
| Working pressure | 2538.2psi |
